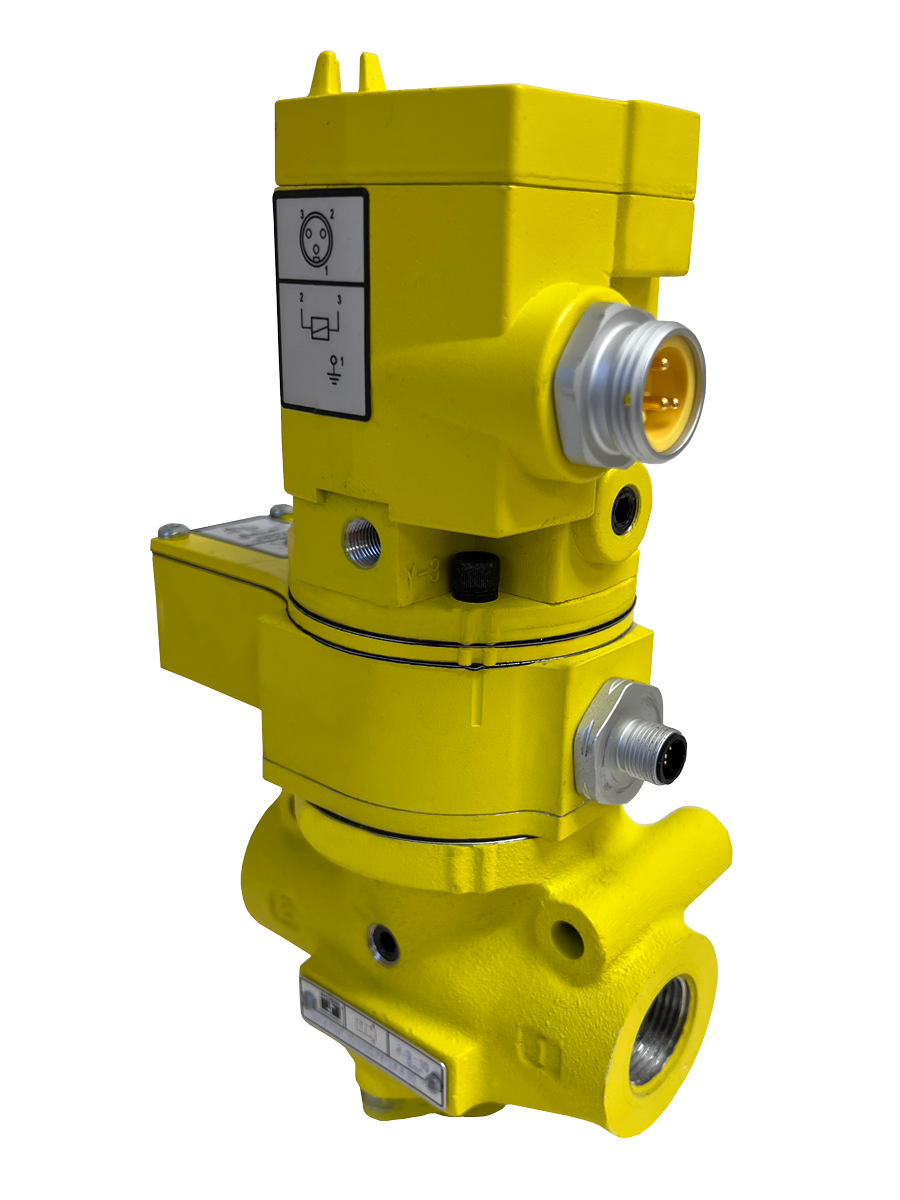

Directional Control Valve [SV27 Series] Safety Category 2 PL c, 2/2-Way Valve, External Monitoring
Frequently Asked Questions
Installation Instructions - SV27 Series Valves
Product Catalog
- Poppet construction for near zero leakage
- Dirt tolerant, wear compensating poppet design for quick response and high flow capacity
- Senses internal position & state
- Electrical feedback via DPST switch (Double-Pole Single-Throw)
- Directly operated safety-rated force-guided positive-break status switch (DPST)
- A diagnostic coverage (DC) of 99% can be obtained by monitoring the safety switch status
- Includes integrated 1/8" sensor port for pressure verification with either a visual pop-up indicator or electrical pressure switch
- SISTEMA Library available for download
+
Directional Control Valve [SV27 Series]
